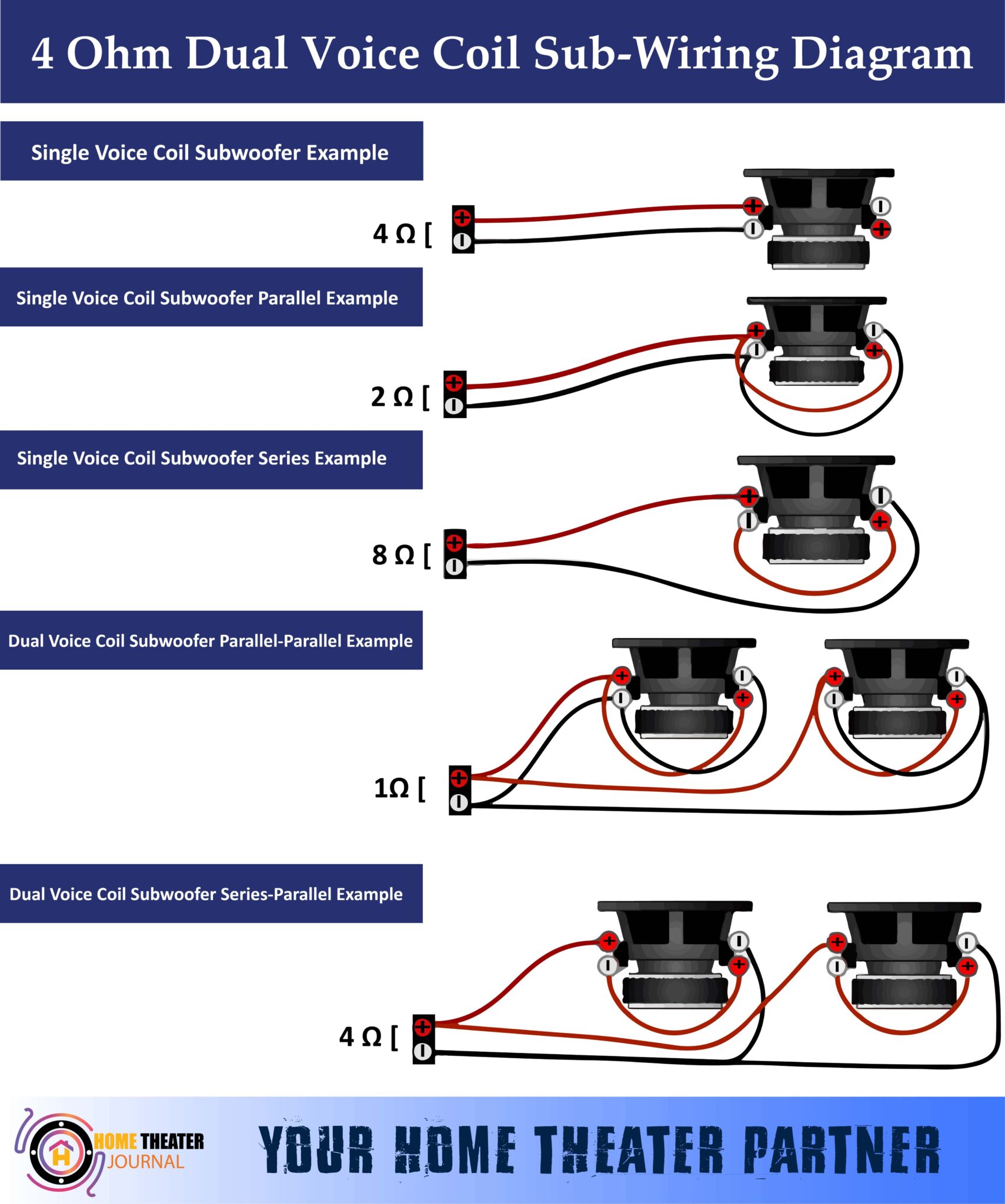

A 4 ohm dual voice coil subwoofer wiring diagram is a plan that shows how to connect a subwoofer with two voice coils to an amplifier. Each voice coil has a resistance of 4 ohms, and the diagram will show how to wire the coils in series or parallel to achieve the desired impedance for the amplifier.
Wiring a subwoofer correctly is important to ensure that the subwoofer performs optimally and does not damage the amplifier. Using a wiring diagram will help to avoid any mistakes that could cause problems.
There are two main types of wiring diagrams for 4 ohm dual voice coil subwoofers: series and parallel. Series wiring is when the positive terminal of one voice coil is connected to the negative terminal of the other voice coil, and the remaining terminals are connected to the amplifier. Parallel wiring is when the positive terminals of both voice coils are connected together, and the negative terminals are connected together. The choice of which wiring method to use will depend on the desired impedance for the amplifier.
1. Series wiring
Series wiring is a common method for connecting dual voice coil subwoofers. It is relatively simple to do and can be used to achieve a variety of impedances. When series wiring, the impedance of the subwoofer is equal to the sum of the impedances of the individual voice coils. For example, if you have two 4 ohm voice coils, the total impedance of the subwoofer when wired in series will be 8 ohms.
Series wiring is often used when the desired impedance of the subwoofer is higher than the impedance of the individual voice coils. For example, if you have a 2 ohm amplifier, you would need to wire two 4 ohm voice coils in series to achieve an 8 ohm impedance.
There are some advantages to using series wiring. First, it is relatively simple to do. Second, it can be used to achieve a variety of impedances. Third, it can help to reduce the amount of power that is lost in the wiring.
However, there are also some disadvantages to using series wiring. First, it can reduce the overall power handling of the subwoofer. Second, it can cause the subwoofer to play at a lower volume.
Overall, series wiring is a good option for connecting dual voice coil subwoofers when the desired impedance is higher than the impedance of the individual voice coils. However, it is important to be aware of the potential drawbacks before using this method.
2. Parallel wiring
Parallel wiring is another common method for connecting dual voice coil subwoofers. It is also relatively simple to do and can be used to achieve a variety of impedances. When parallel wiring, the impedance of the subwoofer is equal to the impedance of the individual voice coils divided by the number of voice coils. For example, if you have two 4 ohm voice coils, the total impedance of the subwoofer when wired in parallel will be 2 ohms.
Parallel wiring is often used when the desired impedance of the subwoofer is lower than the impedance of the individual voice coils. For example, if you have a 1 ohm amplifier, you would need to wire two 4 ohm voice coils in parallel to achieve a 2 ohm impedance.
There are some advantages to using parallel wiring. First, it can help to increase the overall power handling of the subwoofer. Second, it can cause the subwoofer to play at a higher volume. Third, it can help to reduce the amount of distortion that is produced by the subwoofer.
However, there are also some disadvantages to using parallel wiring. First, it can be more difficult to achieve a stable impedance when using parallel wiring. Second, it can cause the subwoofer to be more sensitive to changes in the amplifier’s output impedance.
Overall, parallel wiring is a good option for connecting dual voice coil subwoofers when the desired impedance is lower than the impedance of the individual voice coils. However, it is important to be aware of the potential drawbacks before using this method.
3. Impedance
Impedance is an important concept to understand when wiring a 4 ohm dual voice coil subwoofer. Impedance is measured in ohms, and it refers to the total resistance of the circuit. When wiring a subwoofer, it is important to match the impedance of the subwoofer to the impedance of the amplifier. If the impedance of the subwoofer is too high or too low, the amplifier will not be able to deliver the correct amount of power to the subwoofer, and the subwoofer may not perform properly.
In the case of a 4 ohm dual voice coil subwoofer, the impedance of the subwoofer will depend on how the voice coils are wired. If the voice coils are wired in series, the impedance of the subwoofer will be 8 ohms. If the voice coils are wired in parallel, the impedance of the subwoofer will be 2 ohms.
It is important to match the impedance of the subwoofer to the impedance of the amplifier. If the impedance of the subwoofer is too high, the amplifier will not be able to deliver enough power to the subwoofer, and the subwoofer will not play as loud as it could. If the impedance of the subwoofer is too low, the amplifier may overheat and shut down.
By understanding impedance and how it relates to 4 ohm dual voice coil subwoofer wiring diagrams, you can ensure that your subwoofer is wired correctly and performing at its best.
4. Power handling
Power handling is an important consideration when choosing a subwoofer, and it is directly related to the subwoofer’s wiring diagram. The power handling of a subwoofer is measured in watts, and it refers to the amount of power that the subwoofer can handle without being damaged. If the subwoofer is subjected to more power than it can handle, it may overheat and fail.
The wiring diagram of a subwoofer will determine how much power the subwoofer can handle. If the subwoofer is wired in series, the power handling will be lower than if it is wired in parallel. This is because the impedance of the subwoofer is higher when it is wired in series, which means that less current will flow through the subwoofer and less power will be dissipated.
It is important to match the power handling of the subwoofer to the power output of the amplifier. If the amplifier is too powerful for the subwoofer, the subwoofer may be damaged. Conversely, if the amplifier is not powerful enough for the subwoofer, the subwoofer will not be able to reach its full potential.
By understanding the relationship between power handling and wiring diagrams, you can ensure that your subwoofer is wired correctly and that it is receiving the correct amount of power from the amplifier.
5. Sound quality
The wiring diagram of a 4 ohm dual voice coil subwoofer can have a significant impact on the sound quality of the subwoofer. By understanding the relationship between the wiring diagram and the sound quality, you can ensure that your subwoofer is wired correctly and that it is producing the best possible sound.
- Frequency response: The frequency response of a subwoofer is a measure of the range of frequencies that the subwoofer can reproduce. A subwoofer with a wider frequency response will be able to produce a wider range of sounds, from deep bass notes to high-pitched sounds. The wiring diagram of a subwoofer can affect the frequency response by changing the impedance of the subwoofer. A higher impedance will result in a lower frequency response, while a lower impedance will result in a higher frequency response.
- Sound pressure level: The sound pressure level (SPL) of a subwoofer is a measure of the loudness of the subwoofer. A subwoofer with a higher SPL will be able to produce louder sounds. The wiring diagram of a subwoofer can affect the SPL by changing the power handling of the subwoofer. A higher power handling will result in a higher SPL, while a lower power handling will result in a lower SPL.
- Distortion: Distortion is a measure of the amount of unwanted noise that is produced by a subwoofer. A subwoofer with lower distortion will produce less unwanted noise. The wiring diagram of a subwoofer can affect the distortion by changing the impedance of the subwoofer. A higher impedance will result in lower distortion, while a lower impedance will result in higher distortion.
- Transient response: The transient response of a subwoofer is a measure of how quickly the subwoofer can respond to changes in the audio signal. A subwoofer with a good transient response will be able to reproduce fast and accurate bass notes. The wiring diagram of a subwoofer can affect the transient response by changing the inductance of the subwoofer. A higher inductance will result in a slower transient response, while a lower inductance will result in a faster transient response.
By understanding the relationship between the wiring diagram and the sound quality of a 4 ohm dual voice coil subwoofer, you can ensure that your subwoofer is wired correctly and that it is producing the best possible sound.
Conclusion
A 4 ohm dual voice coil subwoofer wiring diagram is a plan that shows how to connect a subwoofer with two voice coils to an amplifier. The diagram will show how to wire the coils in series or parallel to achieve the desired impedance for the amplifier. Wiring a subwoofer correctly is important to ensure that the subwoofer performs optimally and does not damage the amplifier.
There are several key factors to consider when wiring a 4 ohm dual voice coil subwoofer, including impedance, power handling, sound quality, and frequency response. By understanding the relationship between these factors and the wiring diagram, you can ensure that your subwoofer is wired correctly and that it is producing the best possible sound.
